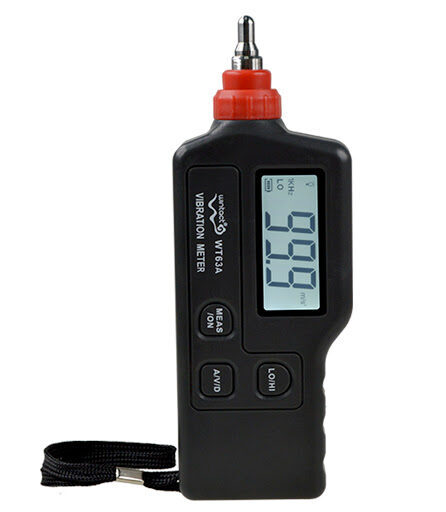

WT63A vibrācijas mērītājs

€177.87

Ielikt grozā

Technical parameter	Technical specification
Vibration pickup	Piezoelectric ceramic accelerometer (shear-type)
Measurement range of acceleration	0.1~199.9m/s² peak
Measurement range of velocity	0.1~199.9mm/s rms
Measurement range of displacement	0.001~1.999mm p-p Velocity and displacement range is limited by 2 acceleration199.9m/s²
Measurement accuracy	±5%±2digits
Measurement frequency range of acceleration	10Hz～1KHz (LO) 1KHz～15KHz (HI)
Measurement frequency range of velocity	10Hz～1KHz (LO)
Measurement frequency range of displacement	10Hz～1KHz (LO)
Displays update cycle	1 second
LCD display	3 1/2 digits display
Single output	AC output 2 V peak (display full scale) Load impedance 10KΩor more earphones can be connected
Power supply	9V Alkaline battery
Static current	≤20μA
Operating current	≤25mA
Battery life	20 hours continuous use
Auto power-off	Turns off automatically in 60 seconds
LCD backlight	7 seconds
Operating temperature range	0~40℃
Operating humidity range	30~90%RH
Low battery indication	6.9V±0.2V
Dimensions	67x30x183mm
Weight	182g ( including battery)
